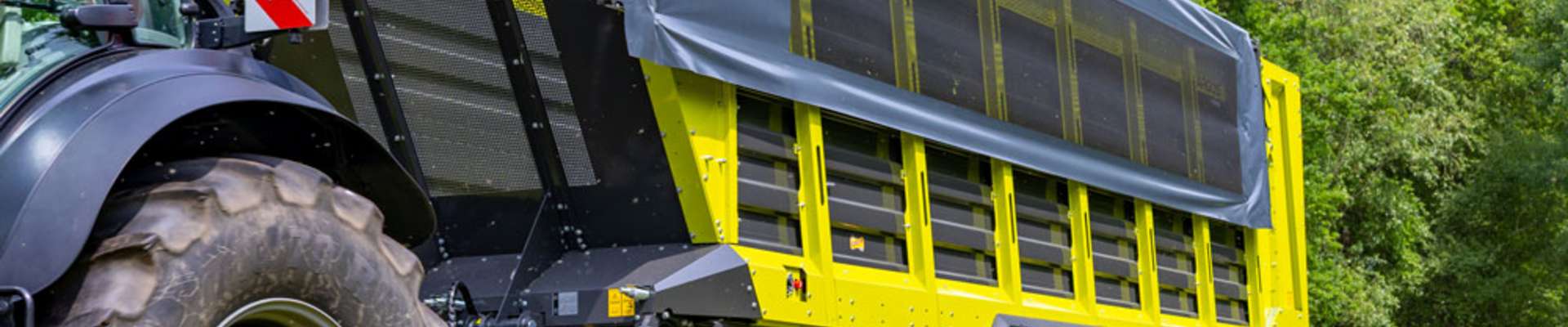

The energy transporter
- Load volume from 38 - 52m3 DIN
- 21-34 tonnes permissible total weight
- Permitted speed 40 km/h
- Tandem or tridem version
- TREND or BUSINESS operation
- Aticulated drawbar incl. suspension with additional benefits for chopping, emptying and tractor optimisation - in a slim design for maximum steering angle
- Chain tensioner accessible from the outside for easy tensioning of the scraper floor chains
- Optional: Removable metering roller module with 2 rollers, sequence control scraper floor/tailgate, load compartment cover, load weight indicatorge

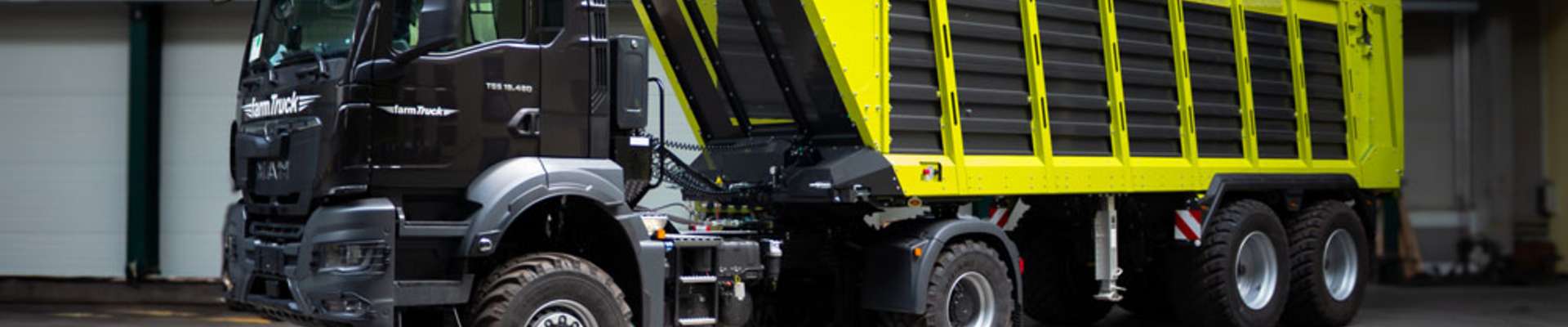

Field suitability and speed in one!
- Load volume from 45 - 52m3 DIN
- 30 tonnes permissible total weight
- Permitted speed 60, 65 oder 80 km/hTandem version with self-steering
- Operation via control units, ISOBUS or wireless control
- Saddle plate with fifth wheel height 135 - 150 cm
- Optional: Follow-up control scraper floor/tailgate, load compartment cover

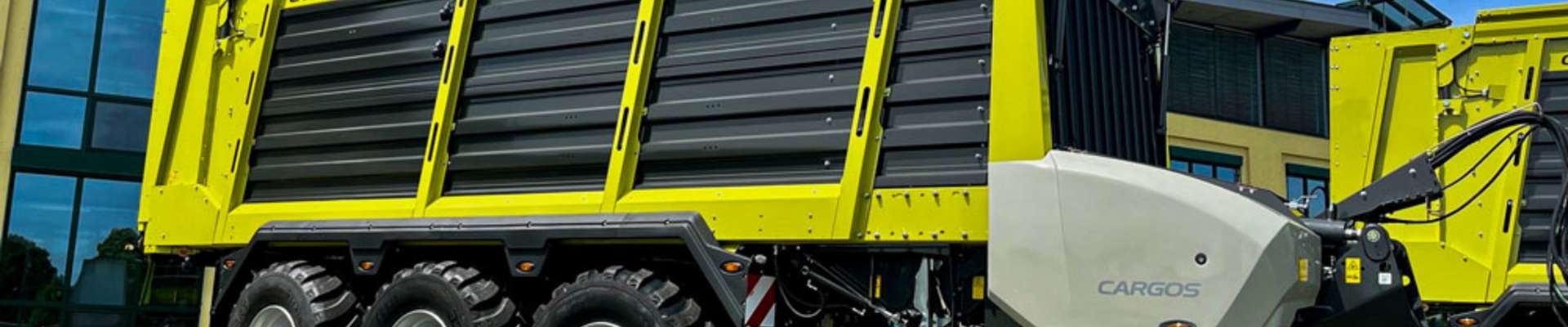

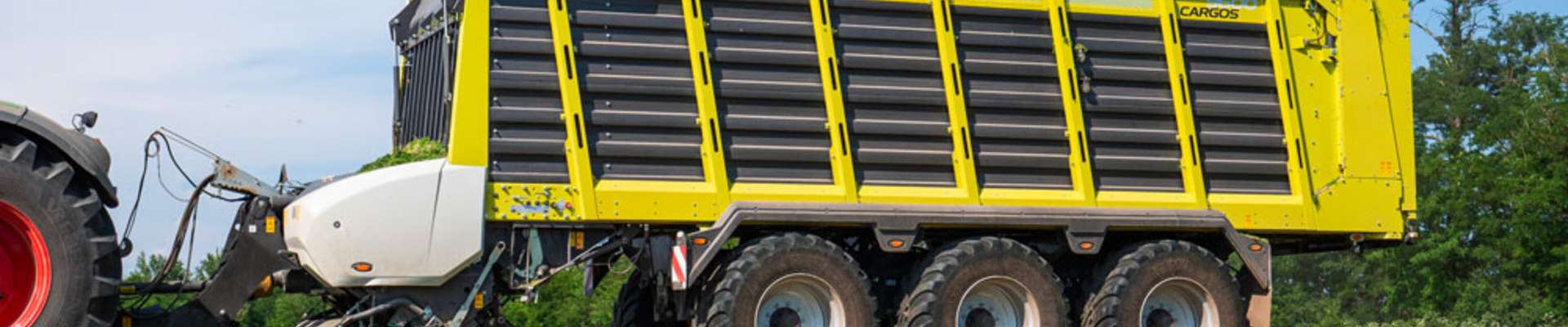

Short cut transport professional
- Removable loading unit ready for chopping with +3 t payload in 20 min or easy cleaning in 15 min.
- Optimized crop flow with hydraulically swivelling scraper floor lowered by 500 mm for fast unloading and knife changes.
- Maintenance-friendly: Cutting trough hydraulically lowerable and decoupled from knife carrier.
- Durable FLIEGL reversible blades – Made in Germany.
- Rotor options: CARGOCUT38 (38 mm) with bolted tines or CARGOCUT24 (24 mm).
- Pick-up options: Pickup 2.0 (2.00 m) or oscillating Pickup Pro2.35 (2.35 m), both sides controlled.
- Optional features: Automatic loading, torque sensing, hydraulic pick-up relief, centre jockey wheel, swivelling front wall Pro.
modular structure
The axle unit
Thanks to the modular design, a considerable amount of tare weight is saved and, depending on the trailer type, up to 10 % more payload is achieved. In addition, the bolted design maximises torsion resistance in the field.
The axle unit is available in a mechanical or hydraulic version.
Available as a tandem or tridem version, with the tridem version featuring modular extensions.
300 mm high, 8 mm thick C-profile with bevelled corners so that no food residues remain in the trolley.
Clean installation of electrics & hydraulics in the C-profile, protected from dirt and silage residues thanks to cover plates.
get around the tightest corners
An overview of our steering systems
Narrow yard entrances or narrow silos, narrow roads on the way to the field - choose the right steering system so that you can safely negotiate the tightest bends even with the largest vehicles.
CARGOS basic equipment:
- Self-steering
- incl. on all models with ISOBUS equipment: automatic speed-dependent locking and automatic locking when reversing
Mechanical-hydraulic forced steering:
- with steering cylinders on the drawbar
- Tandem version 1 cylinder, K50 on the left in the direction of travel
- Tridem version 2 cylinders, K50 on both sides
- incl. cylinder collision protection made of high-strength steel
- only possible on CARGOS 700 series
Electro-hydraulic forced steering:
- Comfort version for all CARGOS with ISOBUS control
- Fully automatic control between driving stability, maximum manoeuvrability, sward and tyre protection
Features of the electro-hydraulic forced steering:
- Adaptive articulation angle warning
- Speed-dependent steering line shift
- Crab steering
- Manual steering option
Standard on all CARGOS 700 & 8000/9000
The articulated drawbar
The drawbar is hydraulically sprung as standard on both the forage transport trailer and the combi loader wagon. This is available with a drawbar load of 3 or 4 tonnes for both types.
The three drawbar positions, with the comparable effect of an air axle:
- Road travel, horizontal wagon position
- chopping, downward tilt - allowing the forage harvester driver to see into the wagon.
- Unloading, tilted upwards - efficient unloading and better traction at the same time by raising the 1st axle ("lift axle" system)
Drive power & zinc - strong on both sides
The scraper floor
Galvanised guide rails, galvanised and bolted scraper floor rails for easy replacement of defective rails.
Heavy-duty and tear-resistant galvanised scraper floor chains guarantee extreme durability
- 3 mm thick floor plates
- Mechanical chain tensioners easily accessible on the trolley
NEW - specially designed hydraulic motor
- Double-sided scraper floor drive on all CARGOS
- Strong scraper floor gearbox with two-stage design as standard
Stage 1 - slow, powerful unloading for extremely wet loads
Stage 2 - fast unloading in rapid traverse
- Reverse travel scraper floor possible, e.g. for bale transport
Maximum stability
The side wall structure
The CARGOS achieves maximum stability thanks to the sophisticated conical side wall structure and clever force distribution management.
Laser-welded tipper drop sides over the entire length of the trailer offer maximum stability and ideal force distribution. A perforation in the upper body enables optimum fill level control.
The CARGOS offers narrow stanchion spacing.
The rear lid enables the loading of 3 x 90 square bales and offers a precisely adjustable opening.
Two equipment options
Operation
Trend
CARGOS 700
- Simple control of scraper floor, rear cap, articulated drawbar and steering axle via the tractor control units.
- Control of the standard two-stage scraper floor and lighting via the control unit.
CARGOS 800
- Radio control via tank line (return) and constant flow pump (supply), recommended minimum oil volume: 150 litres.
- Control with control unit in the lorry: 1-3 double-acting control units required, depending on the wagon equipment.
Business
CARGOS 8000/9000
- Standard operation via ISOBUS incl. load sensing
- Even faster unloading
- incl. sequence control scraper floor/tailgate
- Programming of all work sequences
CARGOS 700 & 800
- Optionally available for all CARGOS 700 & 800
